TQ Wire Charging Cables and Balance Extensions

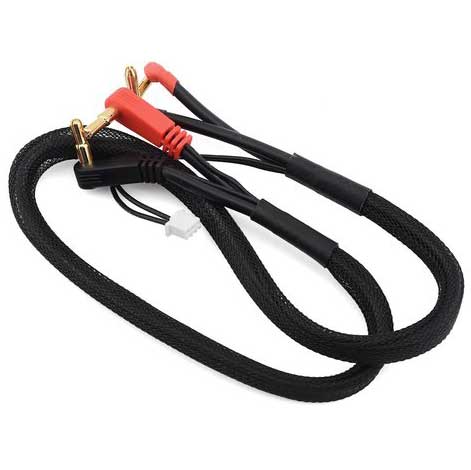

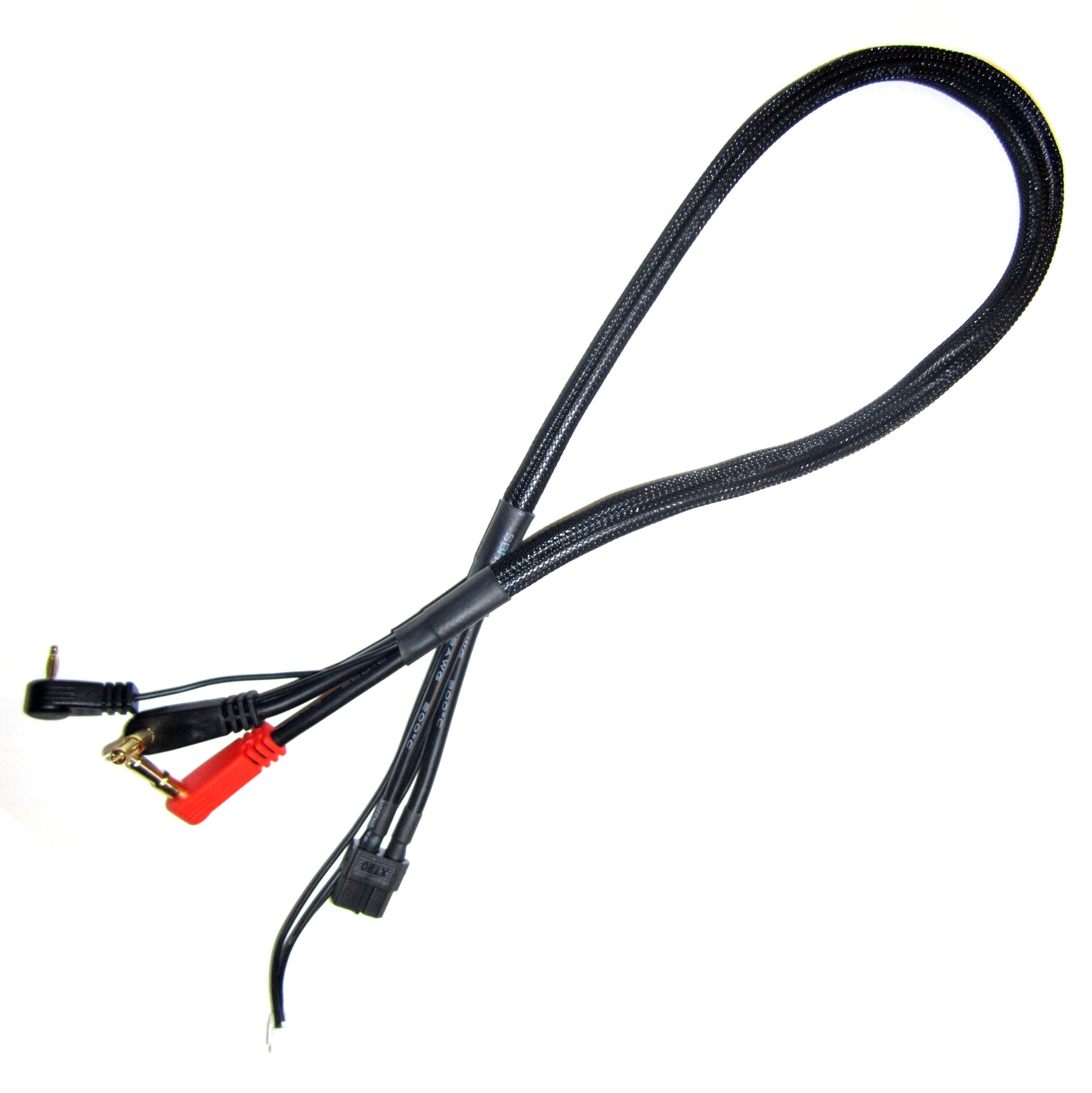

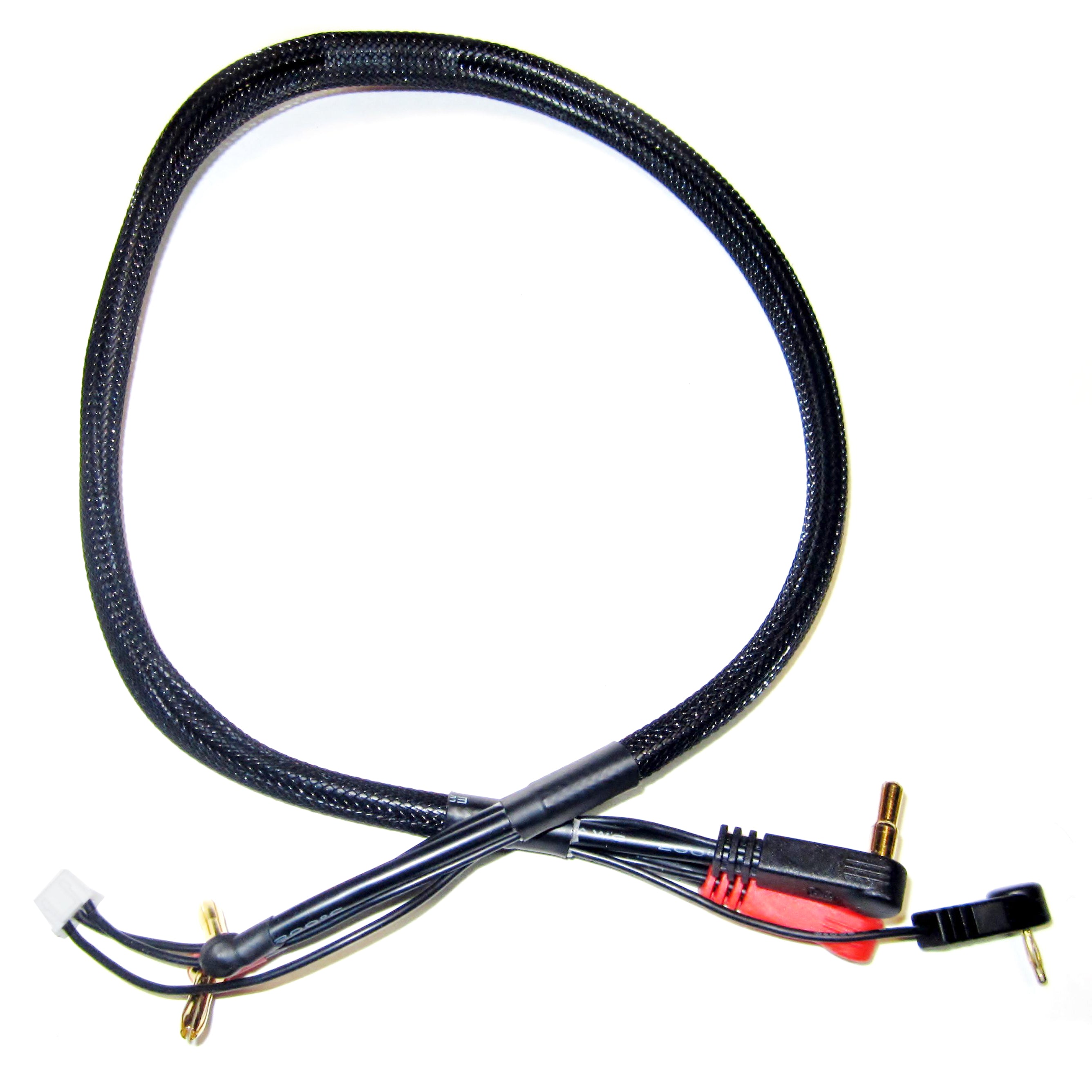

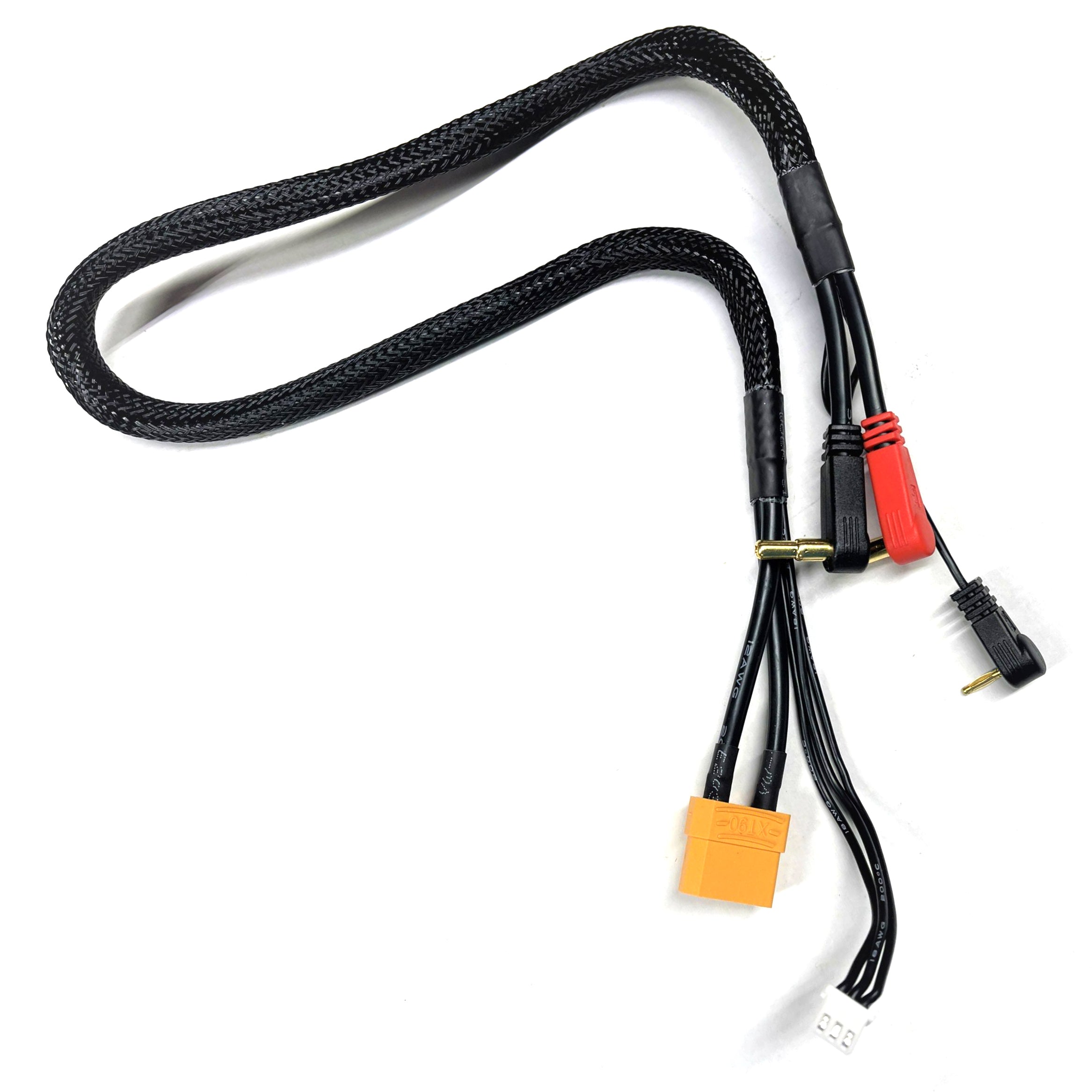

TQ Wire Charging Cables feature 12 Gauge Wires wrapped in Black Nylon Mesh. Strain relief plugs on the battery side make for easy plugging and unplugging while the charger side is available with 4mm bullet plugs, XT60 or XT90 connectors to fit most any charger.

The iCharger 1S and 2S Balance Extension Cable is 600mm in length and plugs directly into the charger’s port and is made for bullet type batteries only. The black lead goes to the negative bullet, the included 2mm tube is soldered to the positive bullet or charge lead. This unit provides use for both 1Cell and 2Cell bullet style packs by “swapping” the 2mm color coded bullets on the cable!

• When you’re charging 1 CELL you plug the BLUE bullet to the positive battery bullet (you don’t connect the red one)

• When you’re charging 2 CELL you plug the BLUE bullet to the battery balance port and the RED bullet to the positive battery bullet.

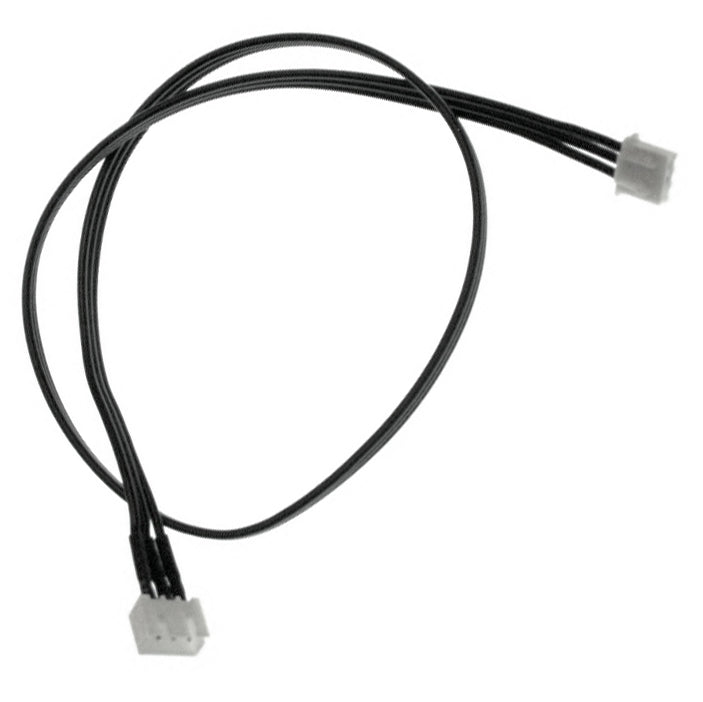

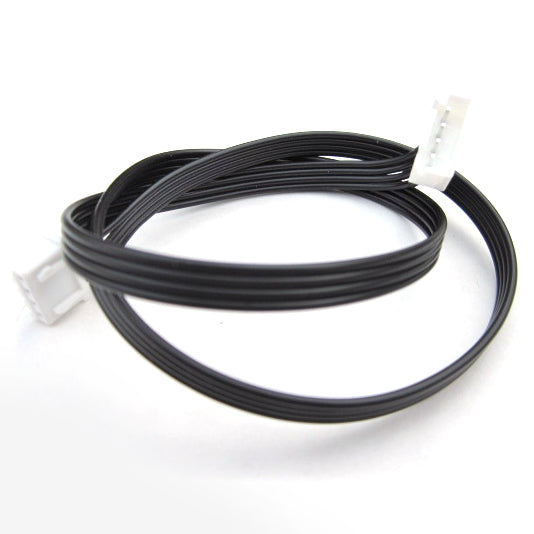

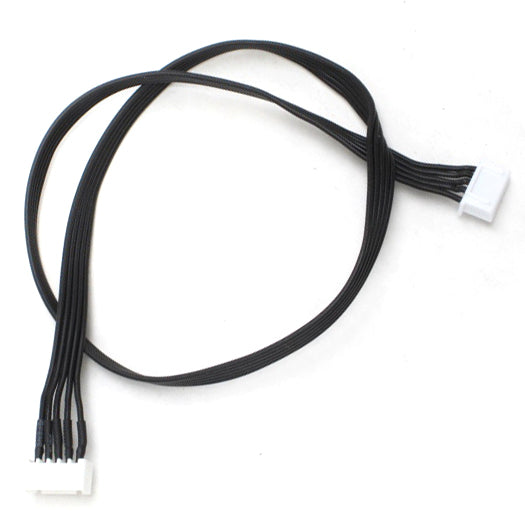

The XH Balance Extension Cables are 600mm in length.
