Team Associated Arm Mount Inserts - 1/0.5

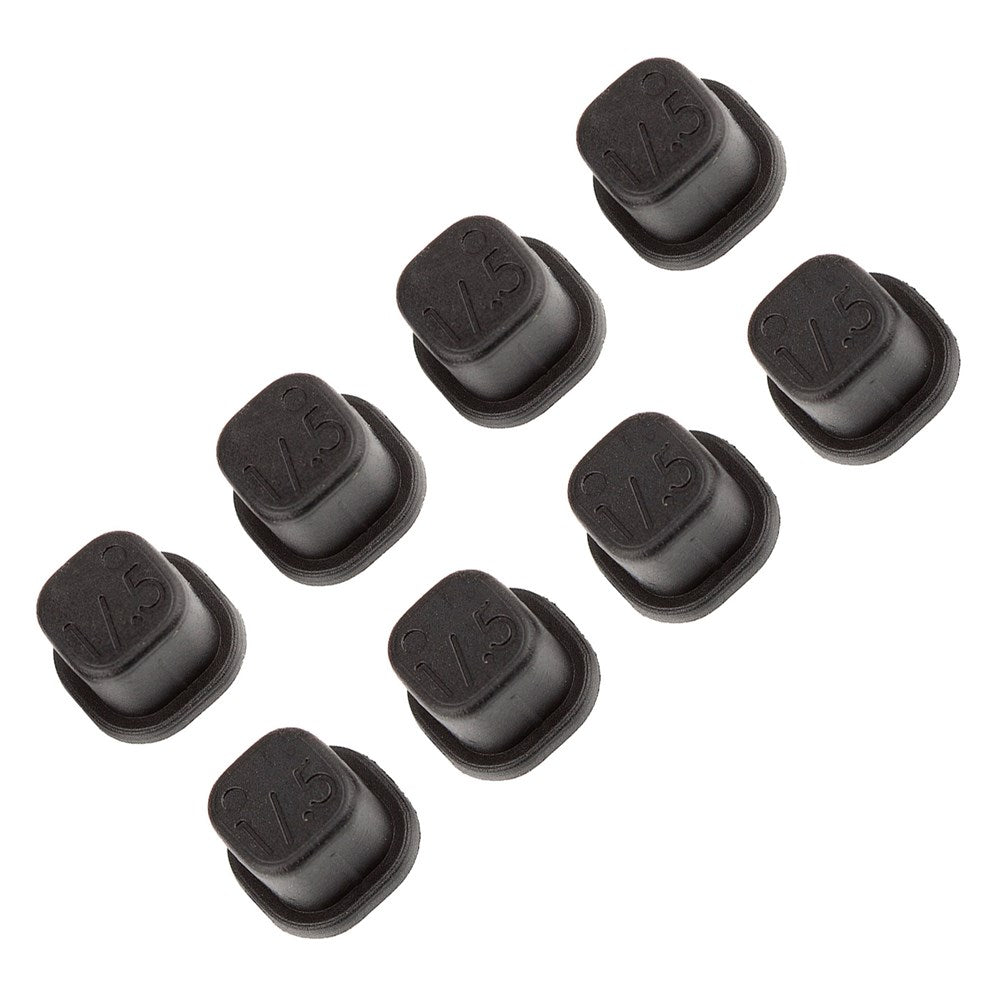

The #92011 Arm Mount Inserts 1/0.5 are molded in black plastic and come with eight per package. Get these to try new settings not previously available with the current inserts. The 1/0.5 inserts help "fill in the blanks" and give a 0.5 step option where you previously only could adjust things in 1.0 steps, 1.0-up or 1.0-corner, filling out the finer settings on the outer perimeter of our current adjustment grid.

The new design holds the hinge pin 1 degree (or 0.7mm) offset UP and 0.5 degree (or 0.35mm) offset IN or OUT. When turned sideways, racers can do 1 degree OUT and 0.5 degree UP or DOWN.

There is a Type 1 and Type 2 cavity (hole locations must mirror each other) so you must watch when installing to keep them symmetrical. This visual chart is your master key showing part orientation.

Click on the Documents tab for options on using the inserts.
