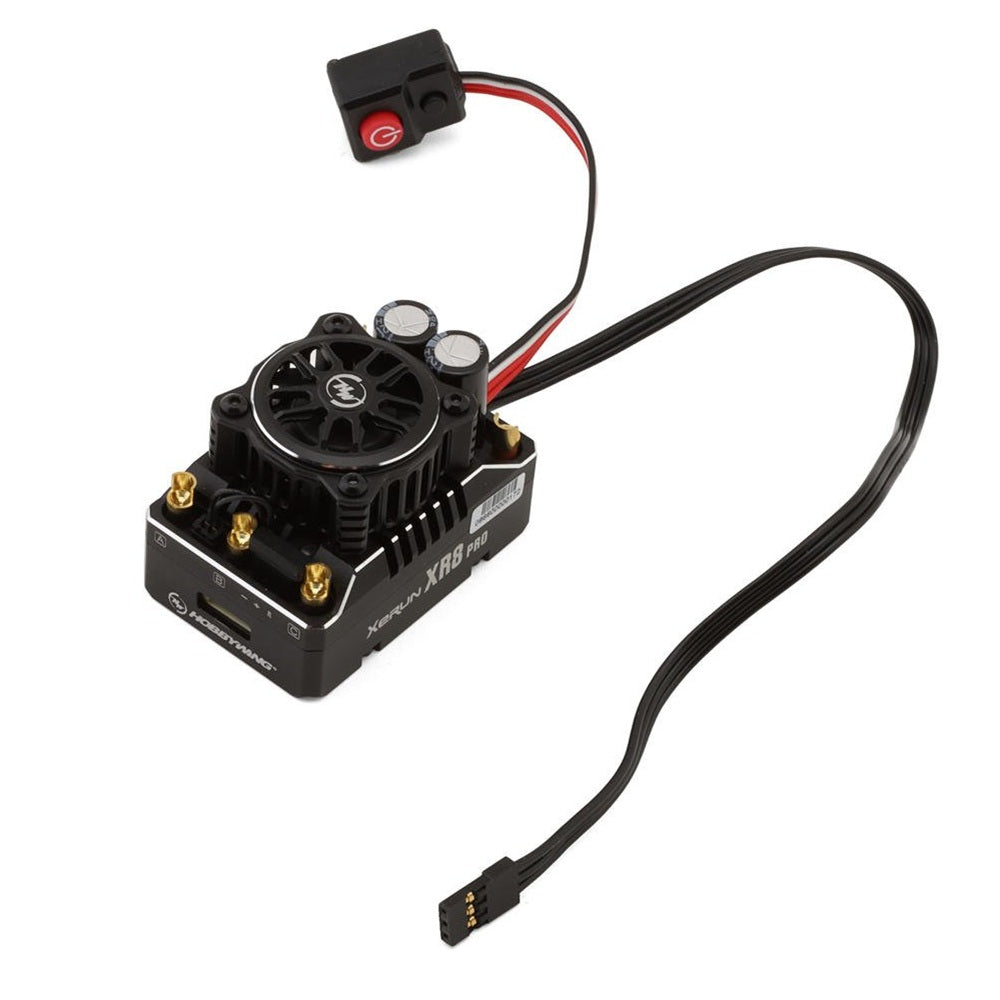

Hobbywing Xerun XR8 Pro G3 200A Sensored Brushless 1/8 ESC

The Hobbywing Xerun XR8 Pro G3 1/8 Competition Sensored Brushless Electronic Speed Controller. Loaded with cutting-edge technologies and features, this 1/8 competition ESC is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition.

Customizable Racing Profiles

The ESC includes three selectable profiles tailored to different racing conditions, allowing users to fine-tune settings for optimal control. These profiles can be easily renamed and customized based on track and motor setups. The ability to save and modify profiles ensures racers can adapt to any situation quickly.

Advanced Power Control & Protections

With variable frequency regulation of both PWM and brake frequencies, the XR8 Pro G3 allows for precise control over driving and braking forces. The ESC also includes multiple protection systems, such as low-voltage cutoff, thermal protection for both the motor and ESC, and fail-safe measures in case of throttle signal loss, ensuring durability and safety on the track.

Features:

• Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
• Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
• Dual brake mode
• Advanced Turbo and Boost timing technology
• Built-in reverse polarity protection circuit
• Real-time data recording function, easy to obtain power running status
• Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
• Superior dustproof protection

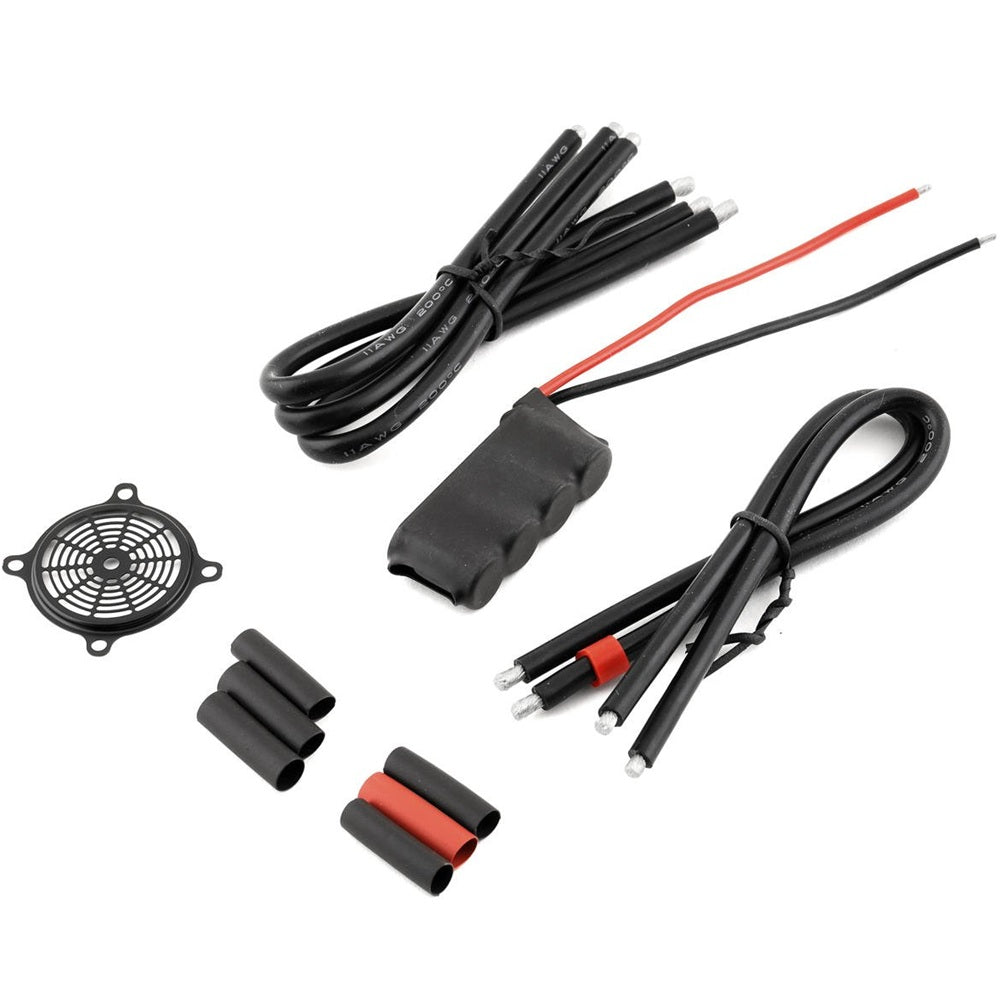

• Custom ultra-soft 11AWG silicone wire

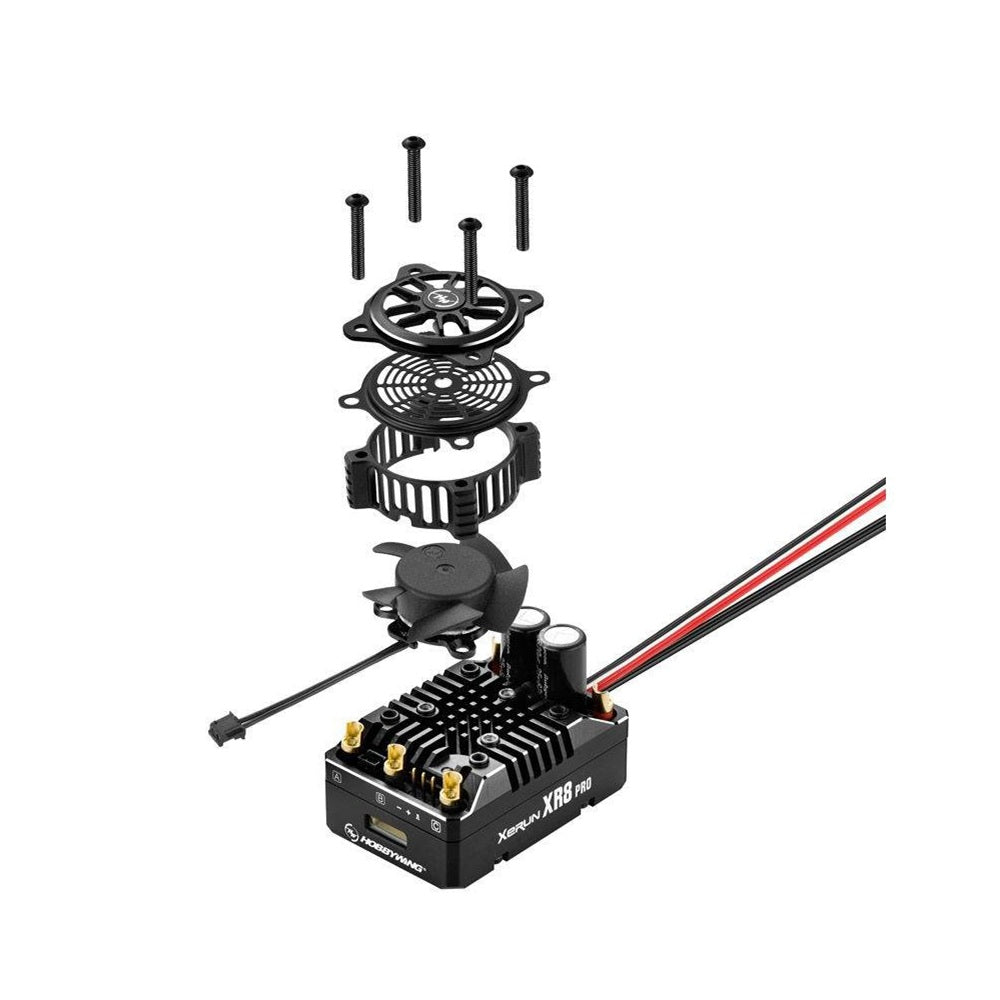

• Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand and other foreign objects
• Intelligent fan with noise reduction and power saving functions

Specifications:

• ESC:
• Scale: 1/8
• Type: Brushless Sensored
• Input Voltage: 2-4S LiPo
• BEC Output: 6V/7.4V Adjustable
• Continuous: 200A
• Peak: 1080A
• Motor Limit: 3S LiPo: KV= 4000 3660 Size motor / 4S LiPo: KV= 3000 4268 Size motor
• Braking mode: FOC/BLDC
• Programmable: Yes, Via OTA Programmer or LCD G2 Program Box
• Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
• Size(LxWxH): 54.8x38.8x36.8mm
• Weight: 102.8g
