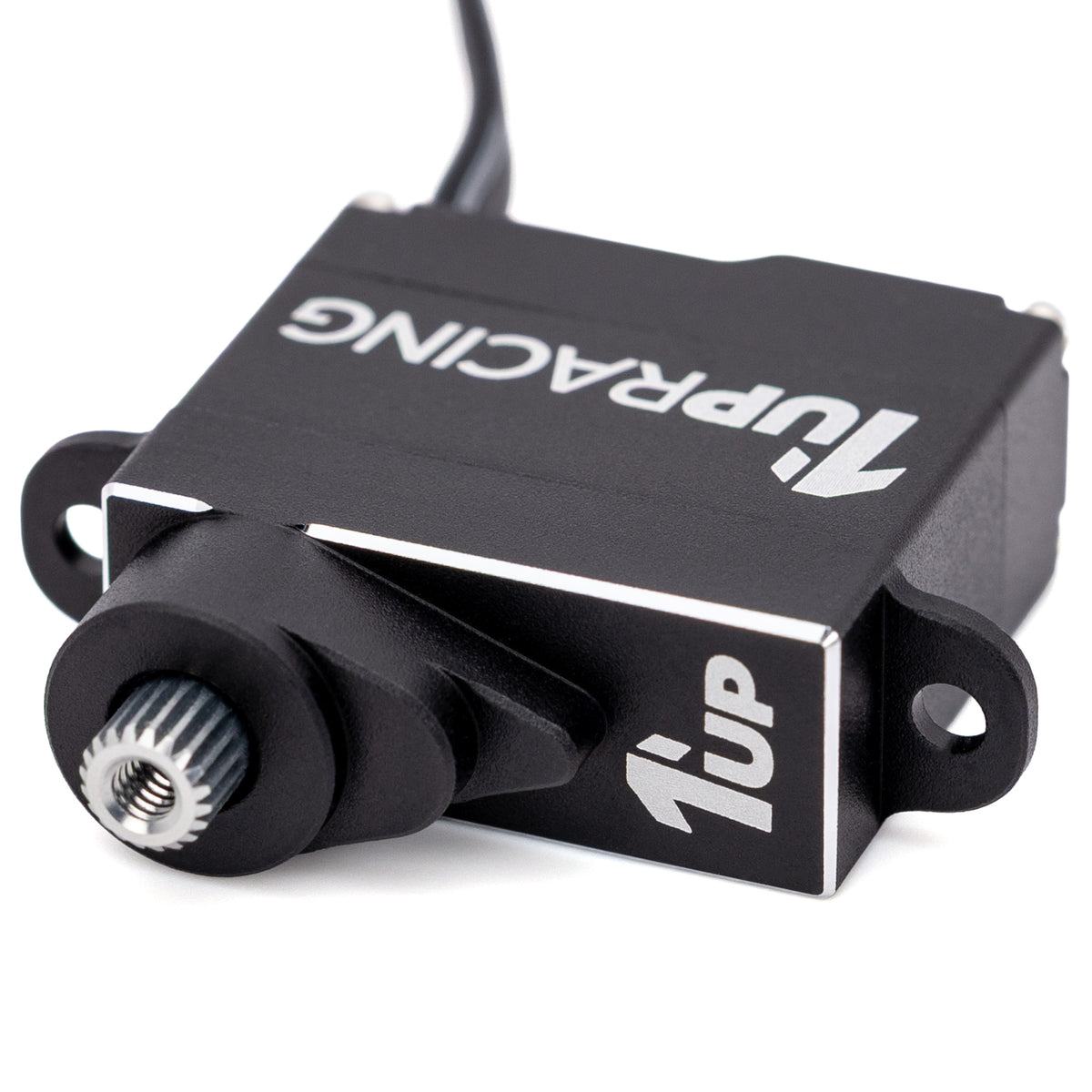

The 1up Racing Precision Aluminum Micro Servo delivers the speed, precision, and durability serious 1/28 racers demand in an ultra-compact 7g package.
Built around a high-performance coreless motor, the Precision Aluminum Micro Servo delivers quick, responsive steering with response times as fast as 0.052 sec/60° at 8.4V. A precision geartrain featuring a titanium main gear provides smooth, accurate steering response with the durability needed for competitive racing.
A fully CNC-machined aluminum case adds strength while helping dissipate heat, all within an incredibly compact 20 x 8 x 17.8mm footprint. The popular 20T output spline provides compatibility with a wide range of 1/28 steering components and chassis platforms.
With a wide 4.8–8.4V operating range, the Precision Aluminum Micro Servo is equally at home in lower-voltage setups or modern 2S-powered competition builds.
Features
-
Ultra-fast response — 0.052 sec/60° at 8.4V
-
High-performance coreless motor
-
Precision geartrain with titanium main gear
-
CNC-machined aluminum case
-
20T titanium output spline
-
High-voltage 8.4V compatibility
-
Compact 8mm-wide design
-
Ultra-lightweight 7g construction
-
Ideal for competitive 1/28 scale applications
Specifications
Operating Voltage: 4.8–8.4V
Operating Speed:
-
0.075 sec/60° @ 4.8V
-
0.066 sec/60° @ 6.0V
-
0.058 sec/60° @ 7.4V
-
0.052 sec/60° @ 8.4V
Stall Torque:
-
25 oz-in (1.8 kg-cm) @ 4.8V
-
30 oz-in (2.2 kg-cm) @ 6.0V
-
36 oz-in (2.6 kg-cm) @ 7.4V
-
41 oz-in (3.0 kg-cm) @ 8.4V
Motor: Coreless
Geartrain: Metal with titanium main gear
Output Spline: 20T
Connector: JST 1.5
Dimensions: 20 x 8 x 17.8mm
Weight: 7g
