1up Racing CF Vertical Rear Body Mount Plate - AE TC8

Got a body that doesn’t fit the horizontal rear posts on your Team Associated TC8? Or do you just prefer the ease of mounting bodies with traditional rear body posts? 1up has you covered with the Carbon Fiber Vertical Rear Body Mount Plate for the AE TC8, proudly made in the USA!

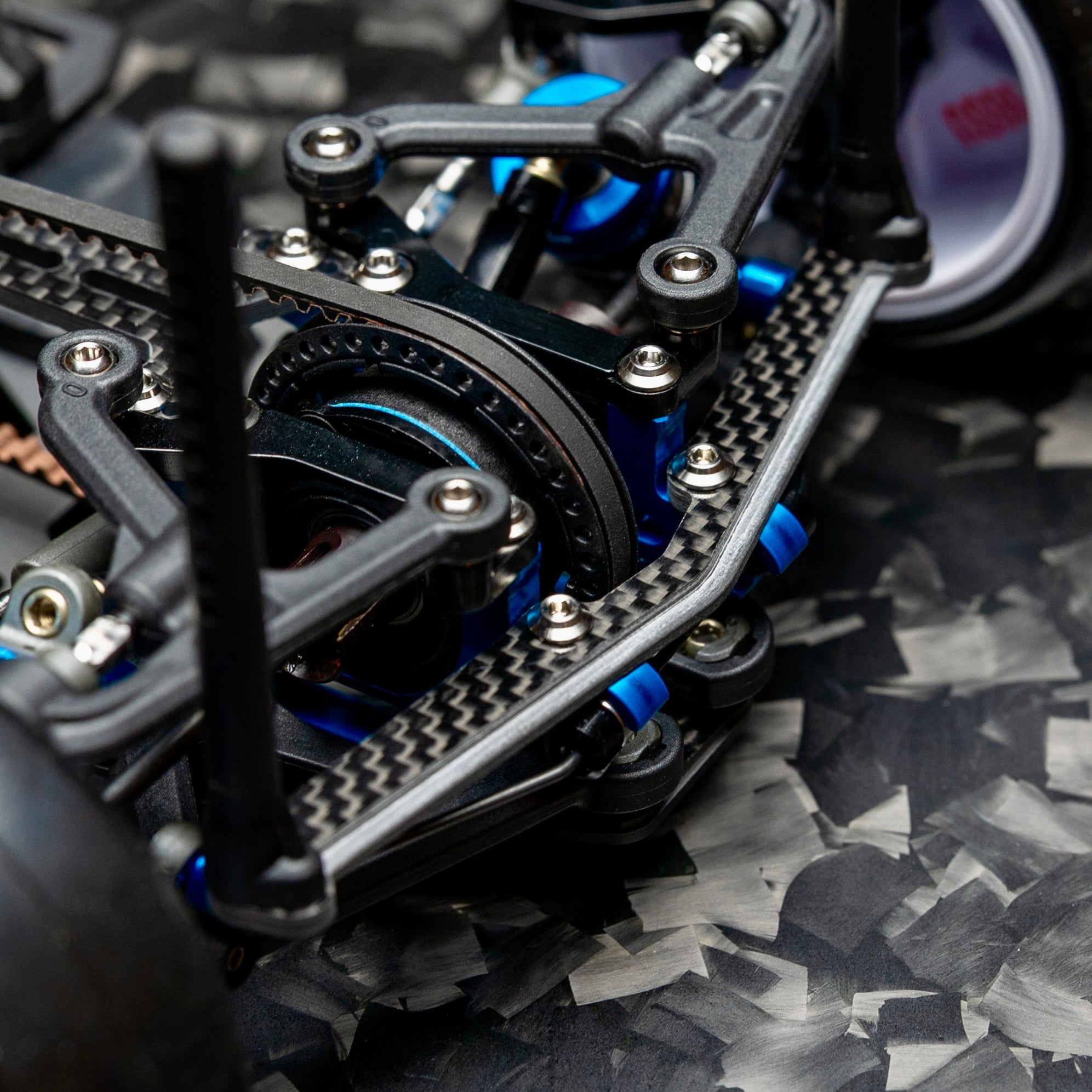

Simply mount our sleek-looking carbon fiber plate to the rear bulkhead of your TC8 and install the tall body posts that are included in your kit (AE Part # 32066) with the included 3x10 LowPro Titanium Screws. Spaced at 100mm apart to fit virtually any 190mm body, this option part will also provide more rear grip and stability for low grip conditions or high-speed modified class racing since it better supports the rear wing area. Mounting VTA or LMH bodies is a breeze with Vertical Rear Mounts as well!

Easy to install, race-proven, and packed with signature 1up form & function—this is a must-have for any TC8 racer!

Features:

• Made in the USA

• Simpler Body Mounting

• Allows for a wider variety of bodies on the TC8 such as VTA and LMH bodies

• Increases Stability in Low Grip & High Speed Mod Racing

Installation Notes:

For perfect fitment of your TC8 Vertical Rear Body Mount Plate, a small amount of material must be removed from the bottom of the plate near the 2 bulkhead mounting holes (see right).

Use a dremel, file or sandpaper to slightly chamfer the highlighted areas so the plate sits flat on the bulkheads. Use your kit mounting screws to install to the bulkheads, then use the included M3×10 LowPro Head Screws to install the long kit TC8 body posts.

Includes:

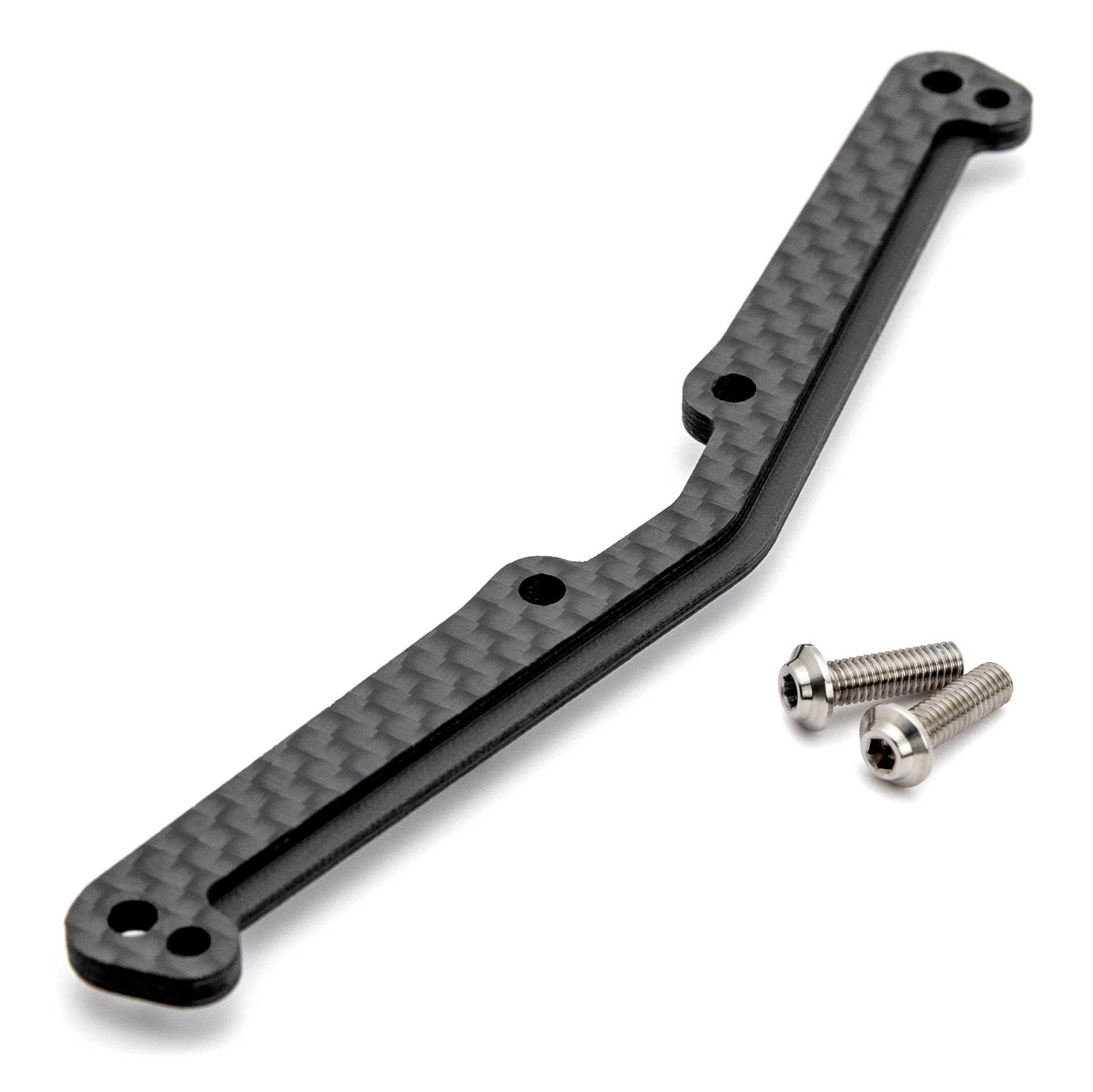

• 1x CF Vertical Rear Body Mount Plate
• 2x M3x10 LowPro Head Pro Duty Titanium Screws
• 1x Installation Instructions
