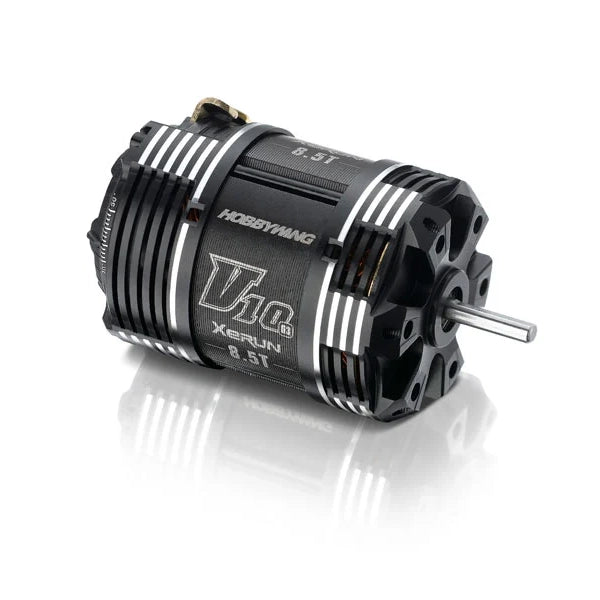

Hobbywing XERUN V10 G3 Modified Motors

Hobbywing

Hobbywing XERUN V10 G3 Modified Motors

$109.99
Size:

Size
Quantity:
Product Sku: HW 30401106

Hobbywing Xerun V10 G3 Modified Motors available in 3.5 through 8.5 turn options. Select your preference in the drop down list.

Applications:
3.5T, 4.5T, 5T Modified Class of 1/10th & 1/12th On-road Racing
5.5T, 6T, 6.5T Modified Class of 1/10th 4WD Off-road Racing
6.5 OnRoad Spec Modified Class of 1/12th On-road Racing
7T, 7.5T, 8.5T 1/10th Drift, 2WD Off-road Racing
10.5T 1/10th Drift, 1/10th STOCK Class On-road, Off-road
13.5T, 17.5T 1/10th STOCK Class Racing
21.5T, 25.5T 1/10th STOCK Class Racing, Rock Crawler



Modified motors (3.5T-8.5T)

2 POLE Super High-Efficiency brushless motor
Diameter/Length (mm): Ø=35.9mm L=51.2mm
Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm
    p/n T KV LiPo (Ω) No-load
    Current
    (A)    		 Max.
    Output
    Power
    (W)    		 Current
    @Max.
    Output
    Power (A)    		 Stock
    Rotor    		 Weight
    (g)
    30401106 3.5 9450 1S 0.0018 7.7 462 126 Φ5-12.1 163
    30401102 4.5 7340 2S

    0.0029

    6.7    		 457 122 Φ5-12.3 163
    30401116 5 6500

    2S

    0.0035    		 5.5 443 118 Φ5-12.3 159
    30401107 5.5 5900

    2S

    0.0041    		 5 426 115 Φ5-12.5 163
    30401117 6 5500

    2S

    0.0048    		 4.5 415 113 Φ5-12.5 162
    30401109 6.5 5120

    2S

    0.0056    		 3.9 402 113 Φ5-12.5 164
    30401123 6.5 OnRoad 6300 2S 7.4 428 107 5-12.5 150
    30401118 7 4800

    2S

    0.0065    		 3.5 364 106 Φ5-12.5 161
    30401110 7.5 4420

    2S

    0.0074    		 3.3 346 100 Φ5-12.5 161
    30401119 8 4200

    2S

    0.0089    		 3.0 320 88 Φ5-12.5 160
    30401111 8.5 3970

    2S

    0.0097    		 2.8 298 84 Φ5-12.5 163


    IMPORTANT NOTES:

    • The KV value is measured when no load is applied to the motor, the motor timing is set to the value by default and the ESC timing is set to Zero. The default timing for the 3.5T~8.5T motors is 30 degrees, and the default timing for the 10.5T~25.5T motors is 40 degrees.
    • Never allow the motor to get overheat, because high temperatures may affect its performance. Please let the motor cool down before using it again in case that it gets too hot.
    • The input current corresponding to the maximum output power can be instructive for load configuration & ESC selection, we strongly suggest not allowing the load to be higher than the input current corresponding to the maximum output power.

    Cautions:

    Warranty terms and conditions, please review here.

    To avoid short circuits, ensure that all wires and joints must be well insulated before connecting the motor to related devices.

    • Never allow this product or other electronic components to come in contact with water, oil, fuel or other electro-conductive liquids. If it happens, stop the use of the product immediately and let it dry carefully.
    • Read through the manuals of all power devices and chassis and ensure the power configuration is rational before using this unit.
    • Never apply full throttle if the pinion gear is not mounted on, because (under the no-load circumstances) high RPMs may get the motor damaged.
    • Connect all the devices carefully, you may not control the vehicle properly or encounter some unpredictable issues like damaged components if any poor connection exists.
    • To avoid possible damage (result from overheat) to the product, please control the soldering time within 5 seconds when soldering the motor wires (a soldering iron with the power of at least 60W is needed).
    • Stop immediate usage once the casing of the motor exceeds 100℃/212℉ as high temperature may damage the motor and cause the rotor to demagnetize. Hobbywing recommends activating the “Motor Thermal Protection” (of the ESC).
